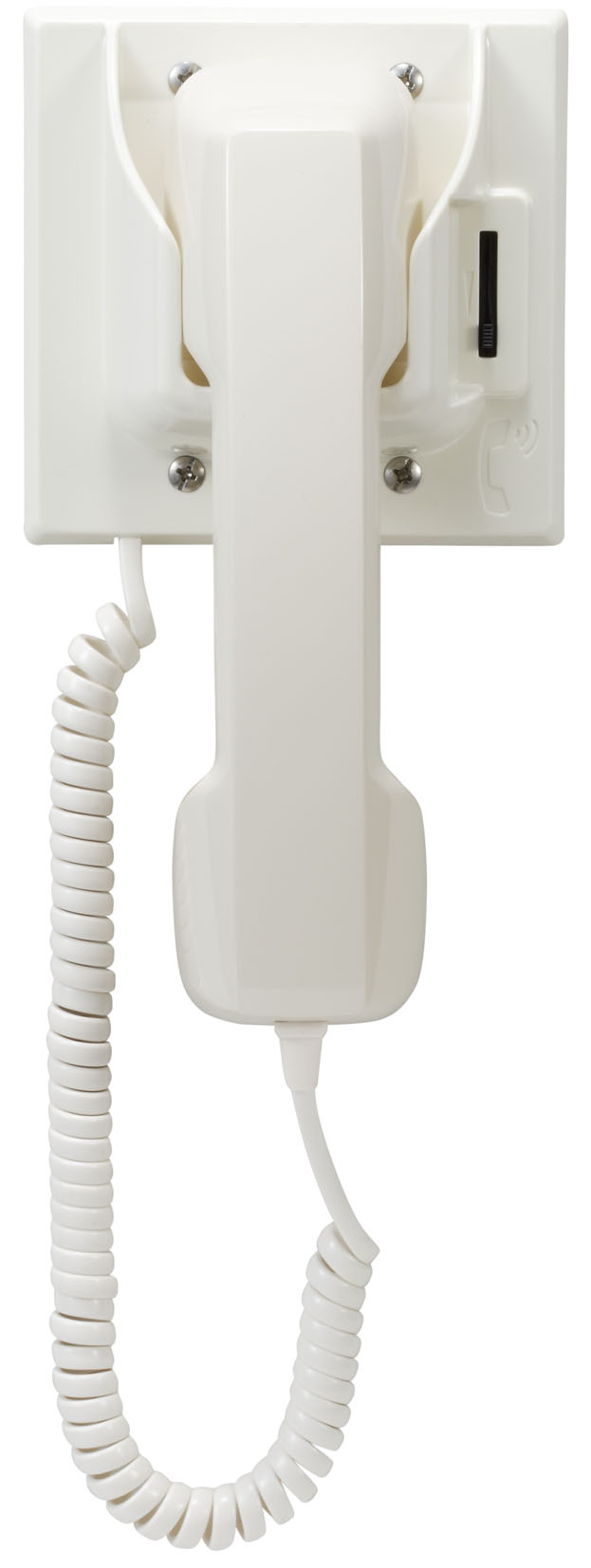

RS-481 IP Intercom Option Handset

RS-481

RS-481

The RS-481 is a handset for the RS-480 4-Wire Multi-Purpose Substation with a Status indicator. Lifting the handset will initiate a call to a preprogrammed master station, enabling a handset conversation.

Specification
Handset Receiver Dynamic type
Handset Transmitter Electret condenser type
Handset receiver volume control Slide volume, Maximum attenuation level: 12 - 18 dB
Operating Temperature 0 %%dC to +40 %%dC (32 ゜F to 104 ゜F)
Finish ABS resin, pale white
Dimensions 116 (W) × 220 (H) × 71 (D) mm (4.57" × 8.66" × 2.8")
Weight 365 g (0.8 lb)
Accessory Box mounting screw (No.6-32UNC × 18) ……4,
Box mounting screw (M4 × 25) ……4
Applicable Box 2-gang electrical box: YC-302 (option)
