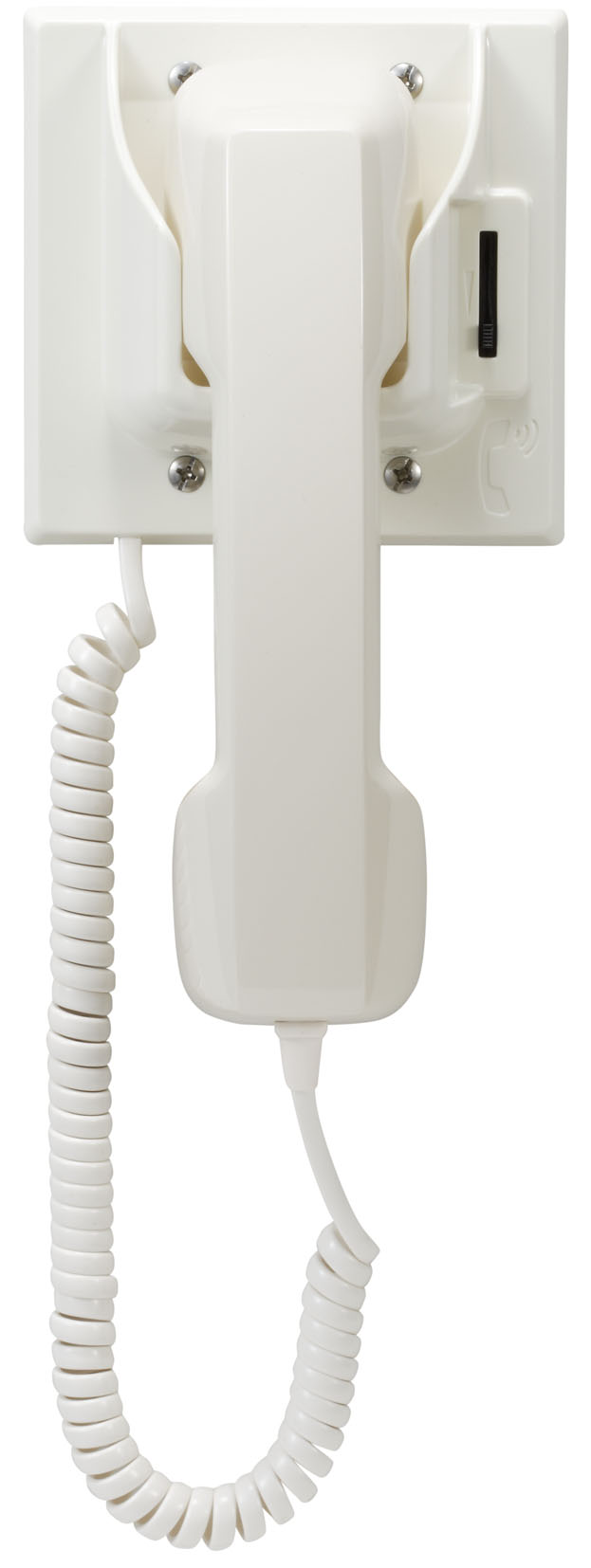

RS-141 IP Intercom Option Handset
RS-141
The RS-141 is a handset for the RS-140 Switch Panel. Lifting the handset will initiate a call to a preprogrammed master station, enabling a handset conversation.
| Handset Receiver | Dynamic type |
|---|
| Handset Transmitter | Electret condenser type |
|---|---|
| Wiring | Two-core shielded cable |
| Handset receiver volume control | Slide volume, Maximum attenuation level: 12 - 18 dB |
|---|---|
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Finish | ABS resin, pale white |
| Dimensions | 116 (W) × 220 (H) × 71 (D) mm (4.57" × 8.66" × 2.8") |
| Weight | 350 g (0.77 lb) |
| Accessory | Box mounting screw (No.6-32UNC × 18) ……4, Box mounting screw (M4 × 25) ……4 |
| Applicable Box | 2-gang electrical box: YC-302 (option) |
