N-8540DS IP Door Station
N-8540DS

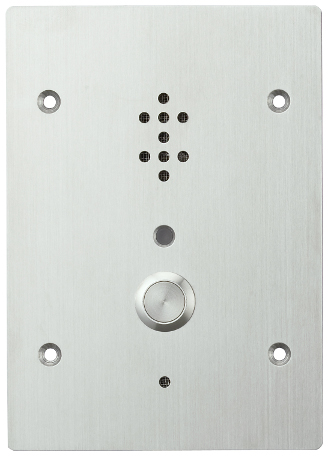

The N-8540DS is an IP door station employing packet audio technology. Connecting the N-8540DS to an IP network (LAN or WAN) permits hands-free conversation of high sound quality to be made between the N-8540DS and the intercom station connected to the IP Intercom Exchange, or between the N-8540DS and an IP multifunctional master station. Besides, the N-8540DS can be used in conjunction with the Multi Interface units through a network. It is in full conformity with IP54 water-proof and dust-proof standards. The operating temperature range is -10 to 50 ℃. As provided with guard nets inside to cover over the openings of microphone and speaker, the N-8540DS can be installed free from care in public space.
| Power Source | Power supply device that complies with IEEE802.3af standard or 12 V DC (supplied from the AC adapter (option)) |
|---|---|
| Power Consumption | 4.2 W (at rated), 6 W (max.) |
| Speech Method | Hands-free conversation |
| Audio Frequency Range | 300 Hz - 7 kHz |
| Hands-free | Speaker: 3.5 cm cone-type, 1 W, 8 Ω Microphone: Omni-directional electret condenser microphone |
| Contact Output | Open collector output, withstand voltage: 30 V DC, control current: 50 mA one shot: can be set from 1 to 9 sec, screw terminal (polarized) |
| Network Section | Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP Audio packet transmission system: Unicast, Multicast Number of paging destinations: 0, *Reception only Connector: LAN: RJ45 connector (PoE compatible) Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software) Quantifying bit number: 16-bit Voice encoding method: Sub-band ADPCM, Cryptosystem Voice packet loss recovery: Silence insertion Audio delay time: 80 ms, 320 ms (controllable on the software) |
| Indication | Status lamp |
| Installation Method | Flush-mount/Surface-mount |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Operating Humidity | 90 % RH or less (no condensation) |
| Housing Protection | BS EN62262: 2002: IK02 equivalent |
| Dust/Water Protection | IP54 (Note that panel edges must be sealed at installation.) |
| Finish | Plate: Stainless steel (SUS304), hairline Call button: Metal |
| Dimensions | 115 (W) × 162 (H) × 55.1 (D) mm |
| Weight | 700 g |
| Accessory | Box mounting screw (No.6-32UNC × 18) …4, Box mounting screw (M4 × 25) …4, Ferrite clamp …1 |
| Option | AC adapter: AD-1210P, AD-1215P |
| Applicable Box | For wall mount: Wall-mount Box YS-13A For flush mount: 3-gang electrical box or Back Box YC-150 |
