N-8500MS IP Multifunctional Master Station
N-8500MS

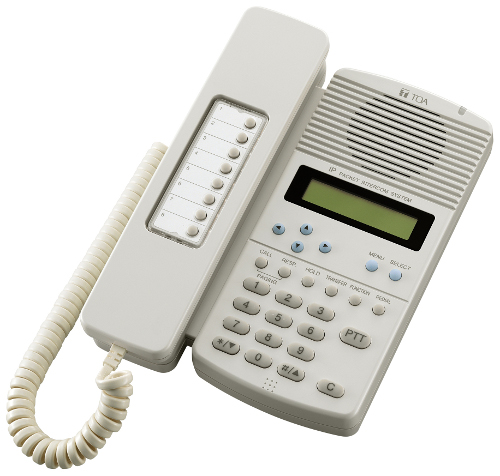

The N-8500MS is an IP multifunctional master station employing packet audio technology. Connecting the N-8500MS to an IP network (LAN or WAN) permits hands-free or handset conversation of high sound quality to be made between the N-8500MS and intercom stations connected to the IP Intercom Exchange, or between the N-8500MS units. Besides, the N-8500MS can be used in conjunction with the Multi Interface units through a network. The Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. Power can be supplied from the PoE (Power over Ethernet) switching hub. (In this case, an AC adapter is not required.) This station can be mounted to the wall using an optional YC-280 wall mounting bracket.
- * 0 dB = 1 V
| Power Source | Power supply device that complies with IEEE802.3af standard or 12 V DC (supplied from the AC adapter (option)) |
|---|---|
| Power Consumption | 4.2 W (at rated), 6 W (max.) |
| Speech Method | Hands-free or handset conversation |
| Audio Frequency Range | 300 Hz - 7 kHz |
| Hands-free | Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω Microphone: Omni-directional electret condenser microphone |
| Handset | Receive path: Dynamic type, Send path: Electret condenser microphone |
| Headset Terminal | Speaker: 3 mW, 32 Ω, Microphone: -49 dB*, φ3.5 mm mini jack |
| External Speaker Terminal | 0.6 W, 8 Ω, screwless connector (2 pins) |
| Network Section | Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP Audio packet transmission system: Unicast, Multicast Number of paging destinations: Unicast (max. 16), Multicast (max. 191) Connector: LAN: RJ45 connector (PoE compatible) PC: RJ45 connector (not-compatible with PoE) Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software) Quantifying bit number: 16-bit Voice encoding method: Sub-band ADPCM, Cryptosystem Voice packet loss recovery: Silence insertion Audio delay time: 80 ms, 320 ms (controllable on the software) |
| Display | LCD: Alphanumeric characters (16 characters × 2 lines) |
| Indication | Status lamp |
| Installation Method | Desk/Surface mounted master station (When mounting to the wall, use the optional YC-280.) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Body, Handset: ABS resin, gray |
| Dimensions | 148 (W) × 208 (H) × 70.5 (D) mm (excluding a curl cord section) |
| Weight | 810 g |
| Accessory | CD (for PC setting, maintenance use) …1 |
| Option | Wall mounting bracket: YC-280, AC adapter: AD-1210P, AD-1215P |
