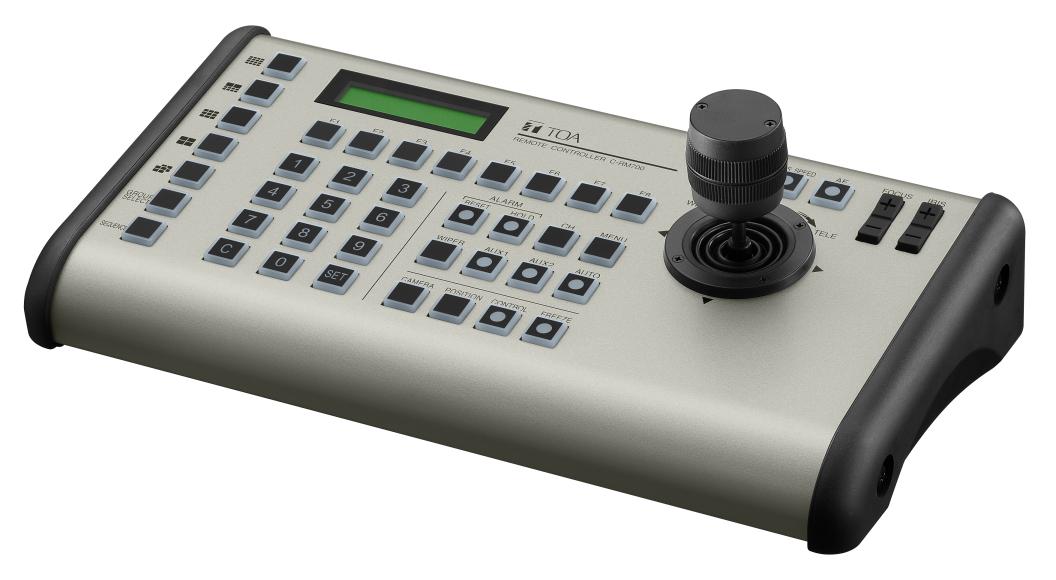

C-RM700 Remote Controller
C-RM700 CU
The C-RM700 is used to remotely control Combination cameras over communication lines (RS-485). It can remotely perform switching video image and controlling for up to 16 cameras in combination with Multi-Switcher. Also, it is equipped with a 3-axis joystick that permits main operation to be performed with one hand.
| Power Source | 12 V DC |
|---|---|
| Current Consumption | 130 mA |
| Slave Remote Controller | RS-485, screwless connector (connectable one slave-designated C-RM700) |
| Camera Control | RS-485 (Type A and B), screwless connector |
| Switcher Control | RS-485, screwless connector |
| Alarm Input | RS-232C, D-sub connector (9 pins, male) |
| Alarm Output/Control Input | Alarm output: 16 channels, NPN open collector output, withstand voltage: 20 V DC, control current: 20 mA, D-sub connector (25 pins, female) Time adjustment input: 1 channel, no-voltage make contact input, open voltage: 5 V DC, short-circuit current: 5 mA max. Home position selection input: 1 channel, no-voltage make contact input, open voltage: 5 V DC, short-circuit current: 5 mA max. |
| Display | LED indication of alarm status, alarm hold status, auxiliary setting 1, auxiliary setting 2, automatic operation status, control status, still picture status, lens speed, and auto focus LCD indication of key entry confirmation |
| Alarm Signal | Continuous alarm tone (can be turned on and off) |
| Number of Unit Connections | Up to 16 (controllable cameras with RS-485 communication) |
| Maximum Cable Distance | 1.2 km (1.31 yd)* |
| Operating Temperature | 0℃ to +40℃ (32゜F to 104゜F) |
| Operating Humidity | 80%RH or less (no condensation) |
| Finish | Panel: Surface-treated steel plate, silver, paint Sides: Rubber |
| Dimensions | 323.6 (W) × 112.7 (H) × 181 (D) mm (12.74" × 4.44" × 7.13") |
| Weight | 1.7 kg (3.75 lb) |
| Accessory | D-sub connector (25 pins, male) …1 |
