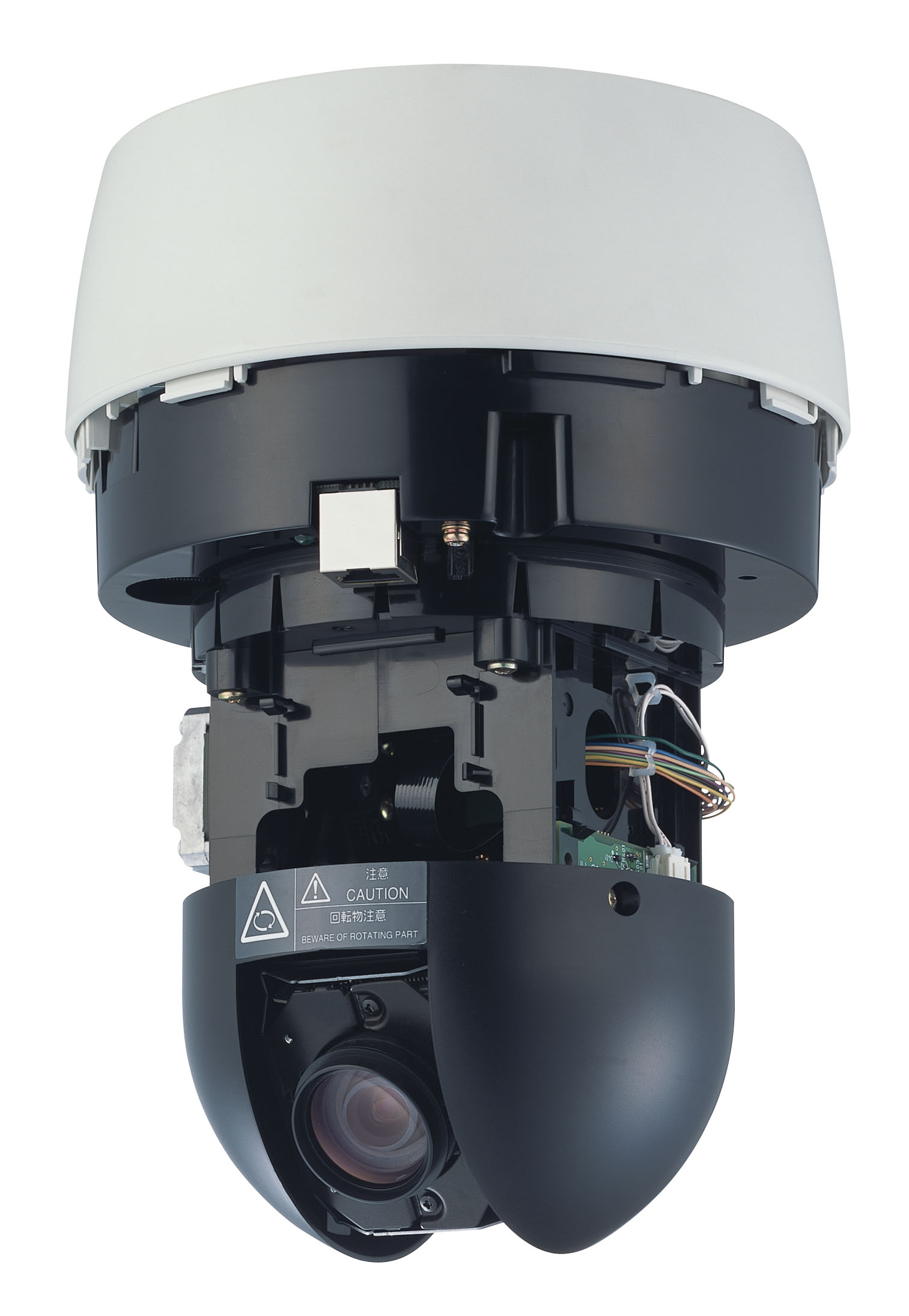

C-CC574 Combination Dome Camera
C-CC574 NT
The indoor dome-type color camera combines with a high-speed camera drive that permits one 360゜ horizontal rotation per second and a 35× optical zoom lens. Up to 255 arbitrary positions can be preset and such preset positions can be instantaneously repeated. It also features timer, a motion detector, auto flip, wide dynamic, black & white mode, a 12× electronic zoom, privacy masking, and tracing.
| Power Source | 24 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 9 W (normal operation), 19 W max. (1.3 A max.) |
| Control | RS-485 communications system (applicable protocol: Type A, Type B) |
| Video Output | VBS 1.0 V(p-p), 75 Ω, BNC-R jack |
| Camera Control Terminal | RS-485 camera control connector |
| Alarm Input | 8 channels, no-voltage make contact input, open voltage: 18 V DC, short-circuit current: 2 mA or less (settable alarm action) |
| Auxiliary Contact Output | 2 channels, open collector output, withstand voltage: 20 V DC, permissible current: 100 mA or less relay contact output, permissible voltage: 20 V DC, permissible current: 1 A or less |
| Synchronization | Internal synchronization/Power synchronization (phase adjustable when in power synchronization mode) |
| ID | 8 characters (alphanumeric and symbols) Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX |
| No. of Preset Positions | 255 + Home |
| Automatic Operation | Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60 s)), Tour (16 preset patterns) |
| Timer | Refresh: Starts at the preset time every day or every week by timer settings Program: Settable 16 actions |
| Language | Menu: English, German, French, Italian ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese |
Camera
| Image Device | 1/4 type CCD |
|---|---|
| Resolution | Horizontal: 540 lines typ. (at center), 520 lines min. |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| S/N Ratio | 50 dB |
| Minimum Illumination | 0.5 lx (50 IRE), 0.15 lx (20 IRE) (Sensitivity-Up ON, color, High-sensitivity function OFF) 0.0025 lx (50 IRE), 0.00075 lx (20 IRE) (Sensitivity-Up ON, B/W, High-sensitivity function ON) 1 lx (50 IRE), 0.3 lx (20 IRE) (Sensitivity-Up OFF, color, High-sensitivity function OFF) 0.005 lx (50 IRE), 0.0015 lx (20 IRE) (Sensitivity-Up OFF, B/W, High-sensitivity function ON) |
| Backlight Compensation | WIDE DYNAMIC/WIDE DYNAMIC 2/Pattern 1/Pattern 2/Pattern 3/OFF |
| Dynamic Range | 52 dB (backlight compensation: WIDE DYNAMIC operation) |
| High-Sensitivity Function | B/W mode and slow shutter mode (32 times max.) |
| White Balance | ATW/AWB |
| Iris | Automatic |
| Flicker Reduction | Automatic correction |
| Electronic Zooming | 12× zooming |
| Auto-Focus | One push/stop AF/continuous |
Lens
| Zooming | 35× |
|---|---|
| Effective Focal Length | f = 3.4 - 119 mm (35×) |
| Effective Angle of View | Horizontal: 55.8゜ (W) - 1.7゜ (T), Vertical: 43.3゜ (W) - 1.3゜ (T) |
| Maximum Aperture | F 1.4 (W) - F 4.2 (T) |
| Zoom Speed | WIDE end to TELE end Approx. 2 s (preset operation), Approx. 3.2 s (manual operation) |
Pan/Tilt Head
| Rotating Range | Panning: Endless 360゜ rotation, Tilting: +5゜ to -185゜ |
|---|---|
| Rotating Speed | Panning/Tilting: 360゜/s max. (preset operation), 360゜/s max. (manual operation) |
| Other Function | Auto flip, Freeze preset, Manual limit, Privacy masking (up to 8), Motion detection (each 8 presets at each 4 positions), EIS |
|---|---|
| Operating Temperature | -10 ℃ to +50 ℃ (continuously active for operation at temperature below 0 ℃) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Application | Indoor used |
| Finish | Base: PC/ABS resin, cool gray Camera: PC/ABS resin, black |
| Dimensions | φ168 × 234 (H) mm |
| Weight | 1.7 kg |
| Accessory | Camera mounting screw …4, Safety wire …1, CD-R (Camera controller software, manual (PDF)) …1 |
| Option | Ceiling mounting cover: C-BC511C, C-BC511C-S Flush ceiling mounting bracket: C-BC511U, C-BC511U-S Ceiling suspension bracket: C-BC511P Wall mounting bracket: C-BC511W Ceiling mounting bracket: C-BC511A |
