C-RM1000 Remote Controller
C-RM1000 CU

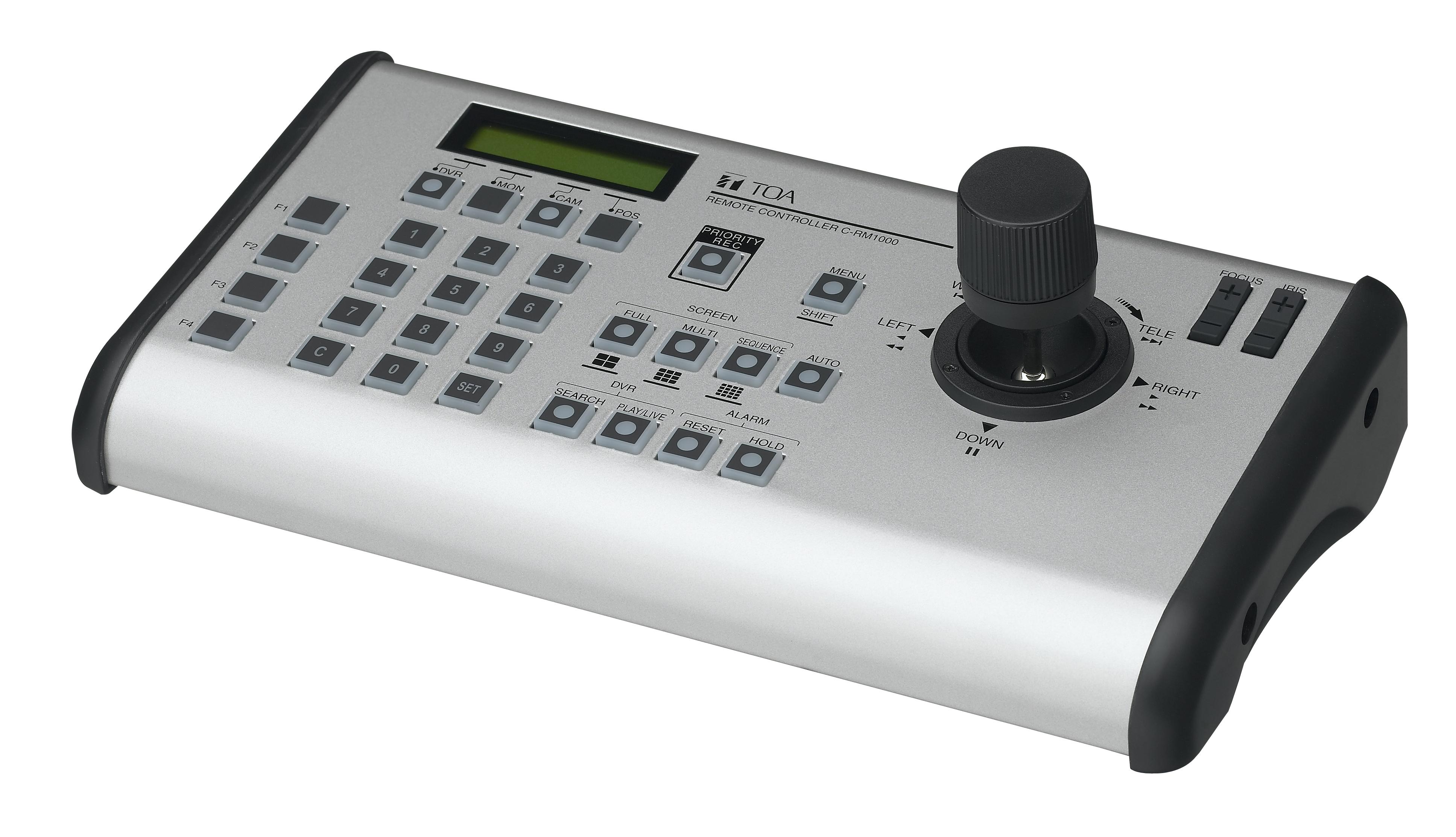

The C-RM1000 Remote Controller is used to remotely control the 9-CH/16-CH Digital Video Recorder (C-DR091/161 series). It can also control combination cameras connected to the Digital Video Recorder. A-built in 3-axis joystick allows main operations to be performed with one hand.
| Power Source | 120 V AC, 60 Hz or 12 V DC (supplied from the digital video recorder) |
|---|---|
| Current Consumption | 80 mA (use of the supplied AC adapter) |
| Digital Video Recorder Control | RS-485, RJ11 (6P6C) (when the included 3-meters modular cable is used) RS-485, screwless connector (3 pins) (with cable length of 3-meters and more, or when C-RF1000 (option) is used) |
| Alarm Signal | Continuous alarm tone (can be turned on and off through the menu) |
| Maximum Cable Distance | 1.2 km * |
| Function | Password setting, DVR Group setting, Abbreviation function (512 types), Preset position setting, Language choice (English/French) |
| Operating Temperature | 0℃ to +40℃ |
| Operating Humidity | Under 80%RH (no condensation) |
| Finish | Panel: Surface-treated steel plate, silver, paint Sides: Rubber |
| Dimensions | 323.6 (W) × 112.7 (H) × 181 (D) mm |
| Weight | 1.6 kg (excluding AC adapter) |
| Accessory | AC adapter (1.8 m) …1, modular cable (3 m) …1 |
| Applicable Model (option) | Digital video recorder: C-DR091/C-DR161 series Interface unit: C-RF1000 |
- * Applies to the system where the unit and a digital video recorder are connected in a matched pair. Represents the total of connected cable distances if multiple digital video recorders or Interface units are connected in the system.
