C-RF1000 Interface Unit

C-RF1000 CU

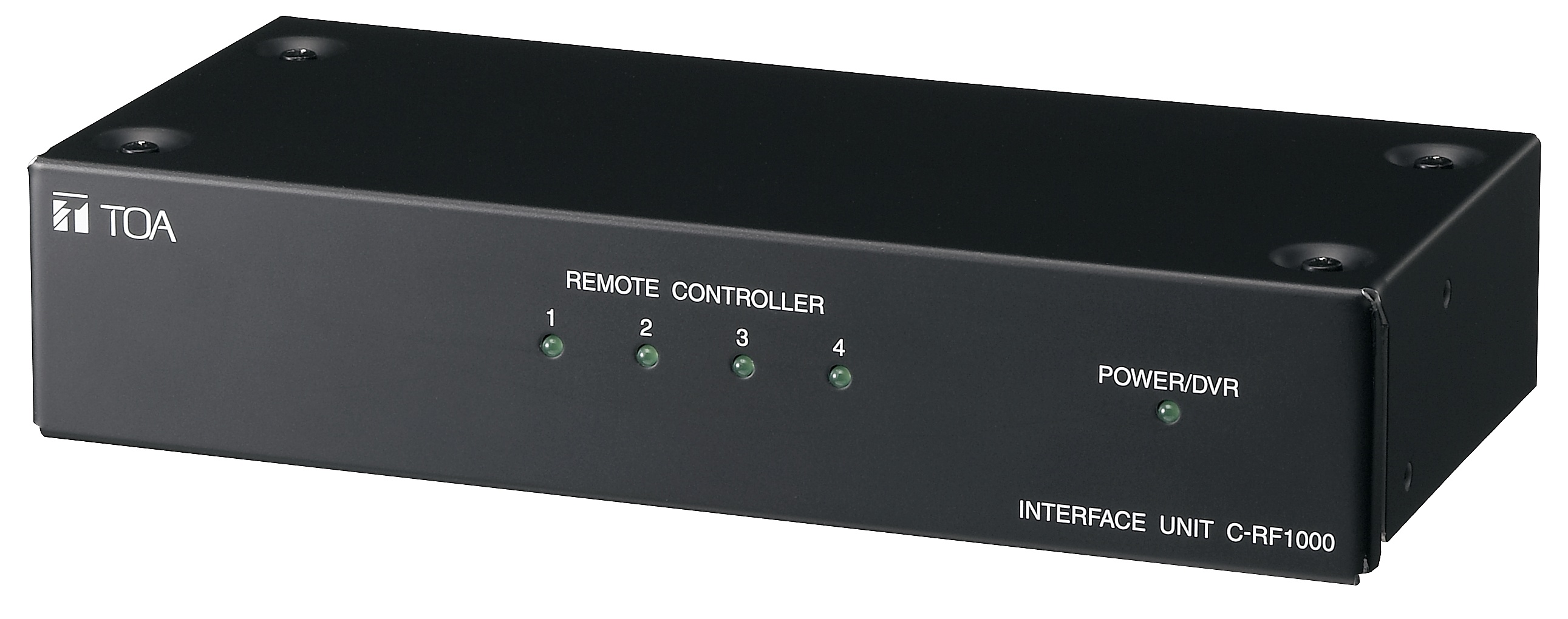

The C-RF1000 Interface Unit is used to operate the 9-CH/16-CH Digital Video Recorder (C-DR091/161 series) with multiple remote controllers (up to 4 remote controllers can be connected). Equipped with an RS-232C terminal, the C-RF1000 can connect to a PC and the like.

Specification
Power Source 12 V DC (supplied from the digital video recorder)
Current Consumption 100 mA
Digital Video Recorder Control RS-485, RJ11 (6P6C)
(when the included 3-meter modular cable is used)
Remote Control RS-485, screwless connector (3 pins) × 4 channels
External Control Terminal RS-232C, D-sub connector (9 P, male)
Transfer Speed Setting 38400/19200/9600 bps (between this unit and the remote controller)
Display Indicates Power/DVR control ON status, indication of remote control
ON 1 - 4
Number of Remote Controller Connections Up to 4 (up to 3 remote controllers when the RS-232C terminal is in use.)
Maximum Cable Distance RS-485: 1.2 km*, RS-232C: 10 m
Operating Temperature 0℃ to +50℃
Operating Humidity Under 90%RH (no condensation)
Finish Pre-coated steel plate, black, 30% gloss
Dimensions 210 (W) × 44 (H) × 98.8 (D) mm
Weight 700 g
Accessory Modular cable (3 m) …1
Applicable Model (option) Digital video recorder: C-DR091/C-DR161 series
Remote controller: C-RM1000
Option Rack mounting bracket: MB-15B-BK (Required when mounting a single
unit in an equipment rack.)
MB-15B-J (Required when mounting a single unit
with other 1U half-size equipment in
an equipment rack.)
* Represents the total of connected cable distances if multiple digital video recorders or Interface units are connected in the system.
