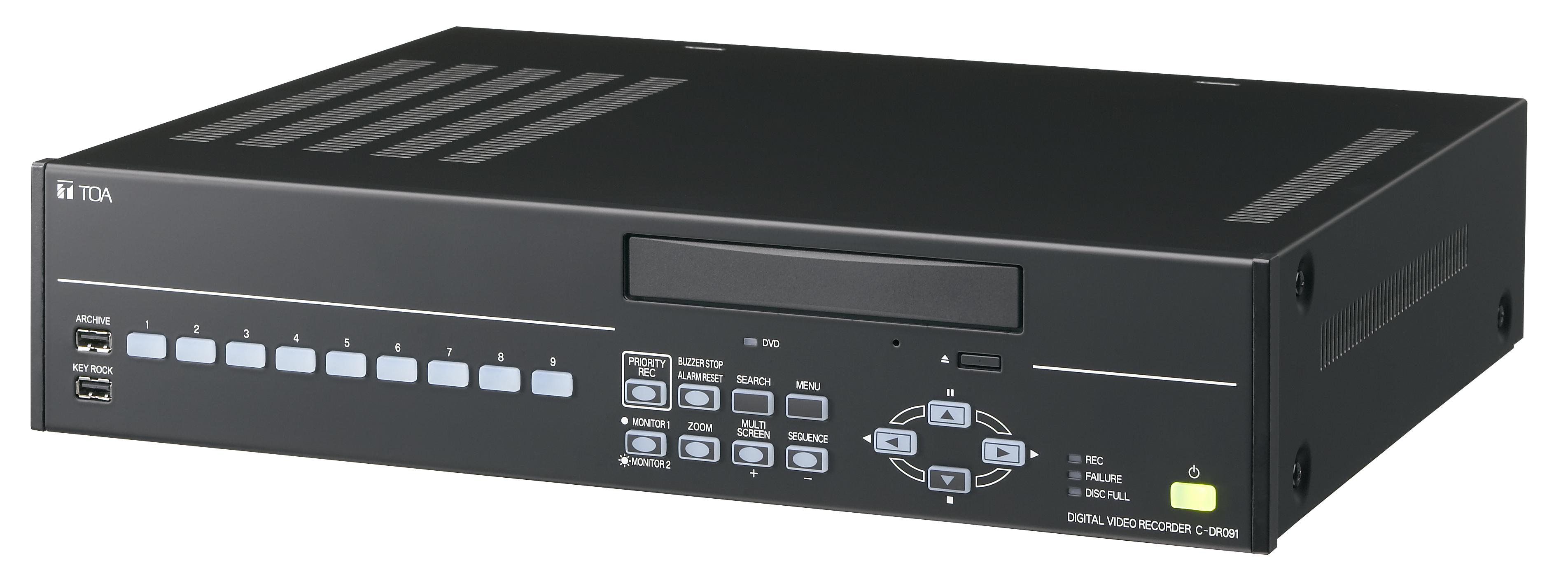

C-DR091D 9CH Digital Video Recorder
C-DR091D PL
The C-DR091D is a motion JPEG digital recorder system employing a hard disk drive as the recording medium. The total recording rate is 100 IPS, which permits high picture quality recording to be performed at 100 images per second. Live and reproduced images can be monitored on full-screen or split-screen displays. Equipped with two hard disks, the C-DR091D can perform Mirroring Recording. Recorded images on the hard disk drive can be backed up onto a DVD-R disc or a USB memory.
- (*1) 0 dB = 1 V
| Power Source | 220 - 240 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 0.38 A |
| Image Compression System | Motion-JPEG |
| Video Format | PAL |
| Recording Medium | SATA Hard Disk |
| Video Input | 9 channels, VBS 1.0 V(p-p) 75 Ω, BNC |
| Video Output | 9 channels, VBS 1.0 V(p-p) 75 Ω, BNC, loop-through |
| Monitor Output | 2 channels, VBS 1.0 V(p-p) 75 Ω, BNC The monitor output 2 is dedicated to real-time image (Full-screen and 4-segment split screen displays only.) |
| Link Input (*2) | 1 channel, VBS 1.0 V(p-p) 75 Ω, BNC |
| Audio Recording System | 8 bits, Linear PCM, sampling frequency: 16 kHz |
| Audio Input | 1 channel, -10 dB(*1), 10 kΩ, unbalanced, RCA pin jack |
| Audio Output | 1 channel, -10 dB(*1), 600 Ω, unbalanced, RCA pin jack |
| Screen Display | 1-, 4-, 9- segment screen sequence, electronic 2x zoom |
| Picture Quality | Changeable in 5 steps 64 kB (Quality 1), 40 kB (Quality 2), 32 kB (Quality 3), 24 kB (Quality 4), 16 kB (Quality 5) |
| Pixels | 720 × 288 pixels |
| Recording Rate | Total recording rate 100 IPS (each camera can be individually set for the following rate) 50, 25, 13, 6, 3, 1, 1/2.5, 1/4, 1/5, 1/10, 1/20, 1/30, 1/60 IPS |
| Pre Recording | Max. 5 min (0 - 300 s) |
| Alarm Recording | Max. 999 s (0 - 999 s), non-limit |
| Motion Recording | Max. 999 s (1 - 999 s), non-limit |
| Date/Time | Year/month/date/hour/minute/second, 24-hours format display, monthly deviation of within ±30 s (25 ℃ (77 ゜F)), can be operated until the year 2099 |
| Motion Detect | 5 Sensitivity levels, can be turned on/off for individual areas |
| Search Function | Date/Time search, Event search (Priority recording, Alarm-input recording, Normal recording, Motion detect recording) |
| Alarm Input | 9 channels (EDGE, LEVEL), no-voltage make contact input, open voltage: 2 V DC, short-circuit current: 1.5 mA, minimum short-circuit time: 100 ms or more, loop resistance: 100 Ω or less, screwless connector |
| Control Output | 4 channels (can be set for Priority recording, Alarm-input recording, Motion detect recording, Video loss, HD full, Fan failure, and HD error) open collector output, withstand voltage: 30 V DC, control current: 20 mA, screwless connector |
| Priority Recording Input | 1 channel, no-voltage make contact input, open voltage: 2 V DC, short-circuit current: 1.5 mA, minimum short-circuit time: 100 ms or more, loop resistance: 100 Ω or less, screwless connector |
| Time Synchronization Input | 1 channel, no-voltage make contact input, open voltage: 2 V DC, short-circuit current: 1.5 mA, minimum short-circuit time: 100 ms or more, loop resistance: 100 Ω or less, screwless connector |
| Time Synchronization Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 20 mA, screwless connector |
| Camera Control | 1 channel, RS-485: screwless connector |
| Remote Control | 1 channel, RS-485: screwless connector or RJ11 |
| Disk Array | 2 channels, eSATA (and dedicated control signal) eSATA connector and modular connector |
| Communication Function | RS-232C: D-sub connector (9 P, male), 10 BASE-T/100 BASE-TX Ethernet: RJ45 |
| Other Function | Mail transmission capability, USB terminals (archive, key lock) (*3), Web function (live, reproduced images, remote, menu), Language choice (English/French/Japanese) |
| Applicable DVD Medium | DVD-R |
| Altitude | 3000 m (9842.52 ft) or less (relative to sea level) |
| Operating Temperature | +5 ℃ to +40 ℃ (41 ゜F to 104 ゜F) |
| Operating Humidity | 80 % RH or less (no condensation) |
| Finish | Panel: Surface-treated steel plate, black, paint, 30 % gloss Case: Pre-coated steel plate, black |
