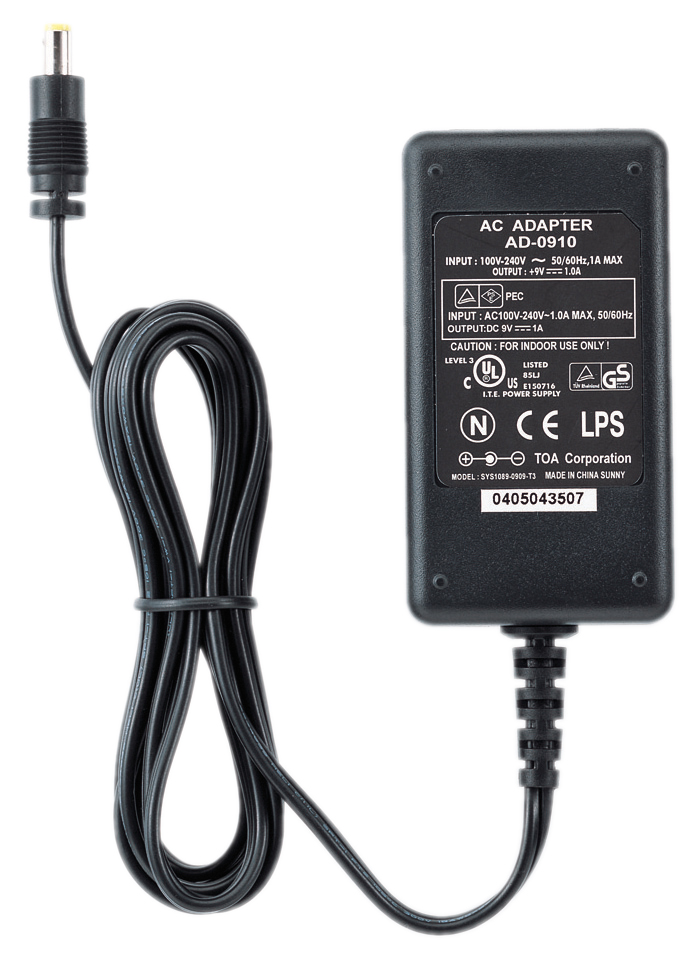

AD-0910 AC Adapter

AD-0910

The AD-0910 is an AC adapter to operate the Chairman units TS-801 and TS-901, and the Delegate units TS-802 and TS-902 on AC.

Specification
Power Source 100 - 240 V AC, 50/60 Hz
Output 9 V DC, 1 A
Ripple Voltage 200 mV (p-p)
Power Consumption 400 mA AC, Input 100 V
Cord Length 1.8 m (5.91 ft)
Plug RC6705, center "+"
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Case: Resin, black
Weight 150 g (0.33 lb)
Accessory AC power cord (2 m (6.56 ft)) ……1
