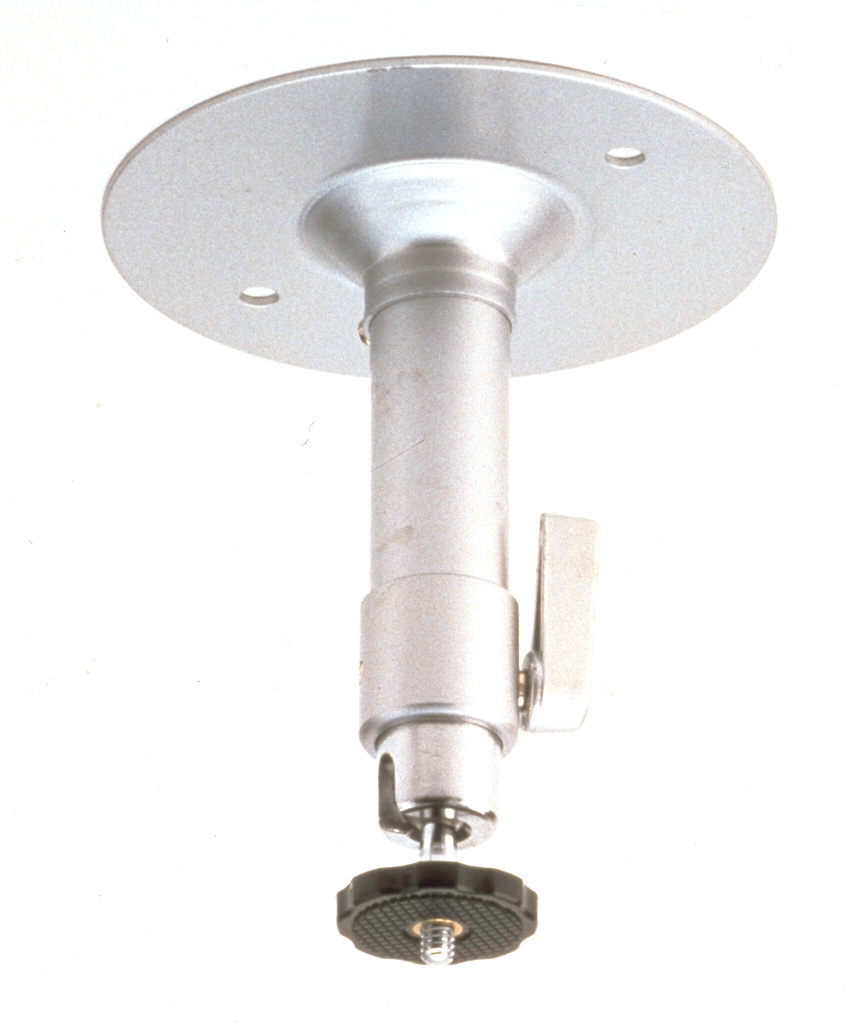

C-BC31 Camera Mounting Bracket

C-BC31

C-BC31

Made of light metal and fitted with a rotatable camera pedestal the C-BC31 is an extensible mounting device for mounting an ITV camera to the ceiling or wall. Since a BNC plug and co-axial cable can pass through the C-BC31's pipe, wiring looks quite neat.

Specification
Permissible Load 4 kg
Angle Adjustment Horizontal: +90 ゜ - -15 ゜
Vertical: 360 ゜
Applications Indoor use
Finish Pipe: Aluminium, painted metallic silver
Camera pedestal: ABS resin, sand gray
Other parts: metallic silver
Weight 240 g
Accessory Fixing screw…2
