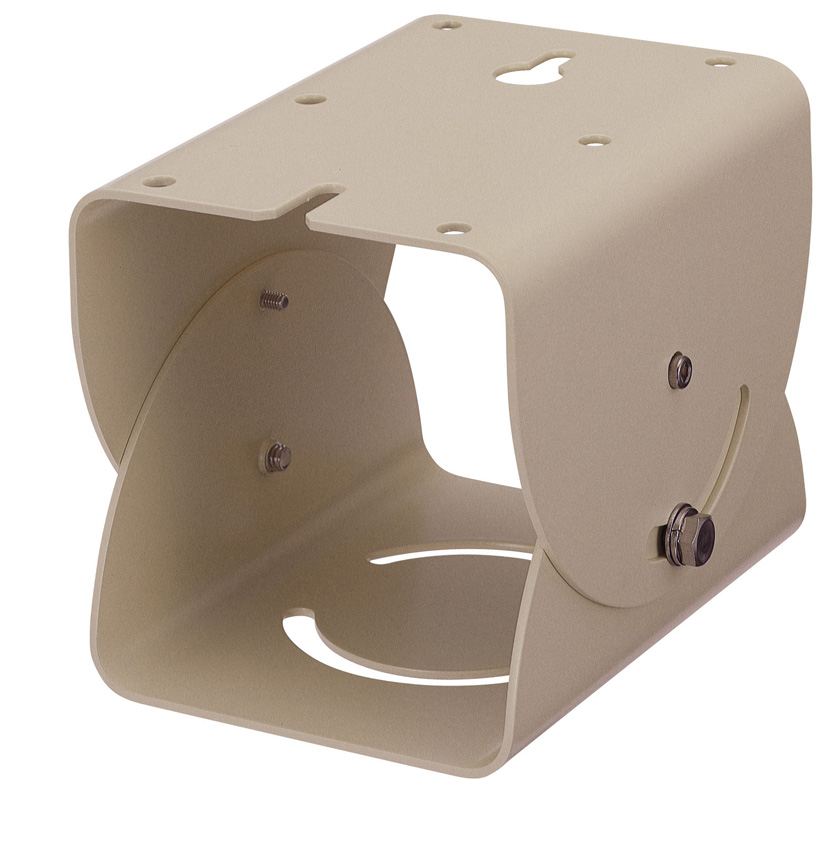

C-BC200H Housing Fixing Stand

C-BC200H

C-BC200H

The C-BC200H Housing Fixing Stand is designed to be used in conjunction with the wall mounting bracket to mount camera housings on a wall to fix cameras in the predetermined direction. The C-BC200H is constructed of stainless steel and is designed to withstand prolonged use in severe outdoor environments without corrosion or marring of the unit's appearance.

Specification
Angler Adjustment Vertical: -60゜ to +20゜
Horizontal: ±60゜ (120゜) when using 2 mounting holes
(Can be set freely for up to 360゜ when C-BC200K is mounted)
Applications Outdoor (except seaside and industrial districts where the unit is subject to corrosion,
and heights that expose the unit to strong wind pressure)
Finish Stainless steel, off-white, paint
Dimensions 119.2 (W) × 108 (H) × 136 (D) mm
Weight 900 g
Accessory Wall mounting bracket mounting bolt (with washer, SUS) …2
Applicable Model Camera housing: C-CH200 series, C-CH100 series
Option Wall mounting bracket: C-BC200K
