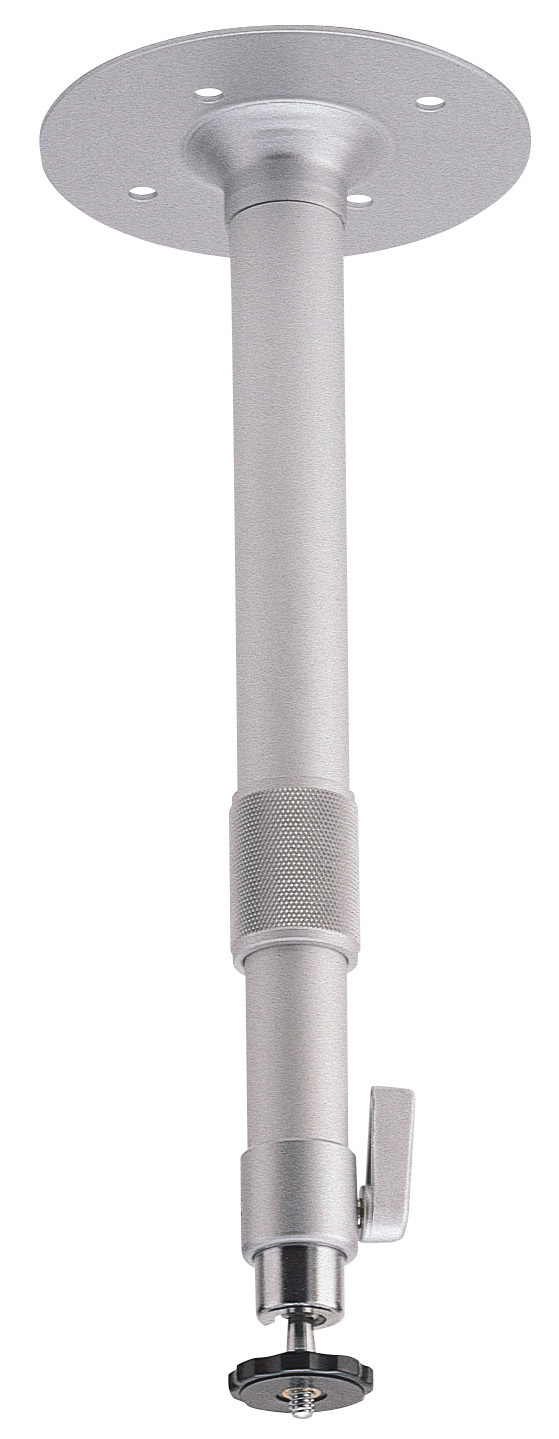

C-BC11 Camera Mounting Bracket

C-BC11

C-BC11

Made of light metal and fitted with a rotatable camera pedestal the C-BC11 is an extensible mounting device for mounting an ITV camera to the ceiling. Since a BNC plug and co-axial cable can pass through the C-BC11's pipe, wiring looks quite neat.

Specification
Permissible Load 4 kg
Angle Adjustment Horizontal: +90゜ to -15゜
Vertical: 360゜
Applications Indoor use
Finish Pipe: Aluminium, metallic silver, paint
Camera pedestal: ABS resin, sand gray
Other parts: metallic silver
Weight 360 g
Accessory Fixing screw…4
