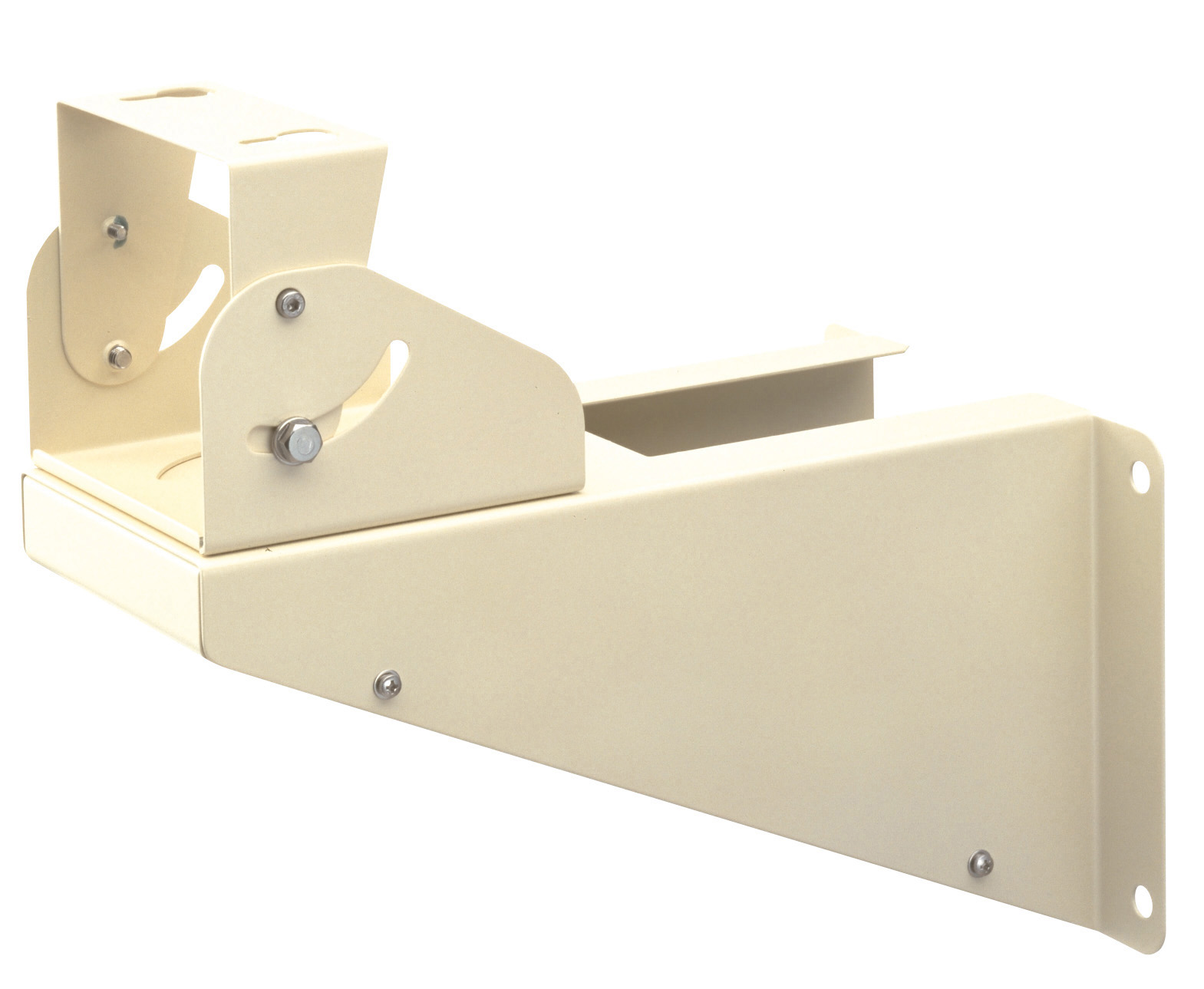

C-BC100K Wall Mount Bracket

C-BC100K

C-BC100K

The C-BC100K is a bracket to mount the camera housing C-CH100 and C-CH100FH to a wall. Since it is made of stainless steel, it can be used even outdoors.

Specification
Since it is made of stainless steel, it can be used even outdoors.
Permissible Load Under 10 kg
Application Indoor or outdoor wall surface
(exclude sea shores and industrial zones where the equipment easily becomes corroded,
and the altitudes exposed to the strong wind)
Angle Adjustment Horizontal: 360゜ (Four bolt mounting holes are provided to permit the position of bolt
to be changed.)
Vertical : Up 15゜ - down 60゜
(depending upon the horizontal angle, the unit may not be tilted 60%%d down)
Finish Stainless steel, off-white, paint
Dimensions 170 (W) × 250 (H) × 275 (D) mm
Weight 1.8 kg
Usable Housing C-CH100 and C-CH100FH
