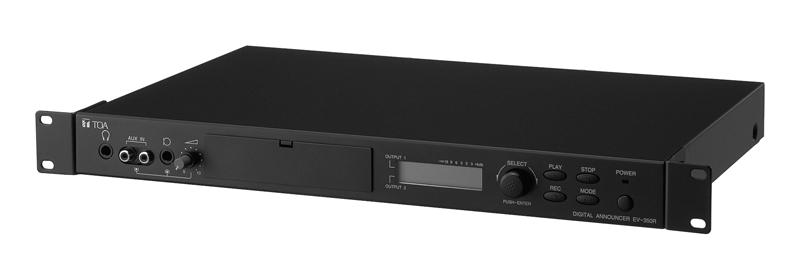

EV-350R Digital Record/Playback Announcer

EV-350R L

TOA's EV-350R Digital Announcing Machine features a maintenance-free design, and permits both recording and playback using the memory card. It can be mounted in an EIA Standard equipment rack.

Specification
* 0 dB = 1 V
Power Source 110 - 120 V AC, 50/60 Hz or 24 V DC 0.4 A
Power Consumption 12 W
Output Outputs 1,2: 0 dB*, 600 Ω, unbalanced, phone jack, M3.5 screw terminal,
Headphone output: 0 dB*, 100 Ω, unbalanced, phone jack
Input Microphone: -55 dB* 600 Ω, unbalanced, phone jack
AUX: -20 dB*, 10 kΩ, unbalanced, phone jack/RCA pin jack
Frequency Response 20 - 20,000 Hz ±3 dB (44.1 kHz sampling)
20 - 14,000 Hz ±3 dB (32 kHz sampling)
50 - 20,000 Hz ±3 dB (44.1 kHz sampling, IT-450 mounted)
50 - 14,000 Hz ±3 dB (32 kHz sampling, IT-450 mounted)
Distortion Under 0.3% (44.1 kHz, recording method: Extremely High)
No. of Mountable Memory Card 2 (Ports A-B) (option)
No. of Recording Sentence When 1 card is installed: 128 or 512 (changeable)
When 2 cards are installed: 256 or 1024 (changeable)
1 emergency sentence, other than the above sentences, can be recorded.
When recorded by a control input: 8 (direct mode) or 256 (binary mode) (changeable)
Recording Sound Quality Sampling frequency: 32 kHz, 44.1 kHz
Recording grade: Long (bit rate: 64 kbps), Normal (bit rate: 96 kbps),
High (bit rate: 128 kbps), Extremely High (bit rate: 192 kbps)
Recording Time (When recording 128 sentences) EV-CF128M Long: 4 h 26 min 46 s, Normal: 2 h 57 min 50 s,
Playback Mode Single- and dual-source playback (changeable)
No. of Playback Program Direct control: 8 programs or Binary control: 256 programs
1 emergency message takes precedence over the above programs and is played back.
Control Input Activations 1-8, playback, pause 1, pause 2, emergency, recording, erasure/clear:
No-voltage make contact input, pulse make length: over 50 ms,
open voltage: 30 V DC, short-circuit current: 10 mA, M3.5 screw terminal
RS-232C terminal: D-sub connector (9 pins, male)
Control Output Shorting outputs 1,2, Error: M3.5 screw terminal, contact capacity: 30 V DC, 0.5 A
Operating Display LCD with backlight (16 characters × 2)
Operating Temperature 0℃ to +50℃
Operating Humidity Under 90%RH (must be free from dew condensation)
Finish Panel: Aluminum, black, 30% gloss, paint
Case: Surface treated steel plate, black, 30% gloss
Dimensions 482 (W) × 44 (H) × 315 (D) mm
Weight 4 kg
Accessory Power cord……1, Unbalanced-phone plug cord (2 m)……2, Rubber foot……4,
Rack mounting screw……4, Rack mounting washer……4,
Rack mounting bracket (pre-fixed to the unit)……2
Option Memory card: EV-CF128M
[NOTE] (1) The sentence refers to recording data for one recording unit. Programs are created by combining the sentences and are played back. (2) Phone jack outputs 1 and 2 can be converted to balanced type using an optional IT-450 transformer. (3) Distance between barriers on the above screw terminals: 8.2 mm
