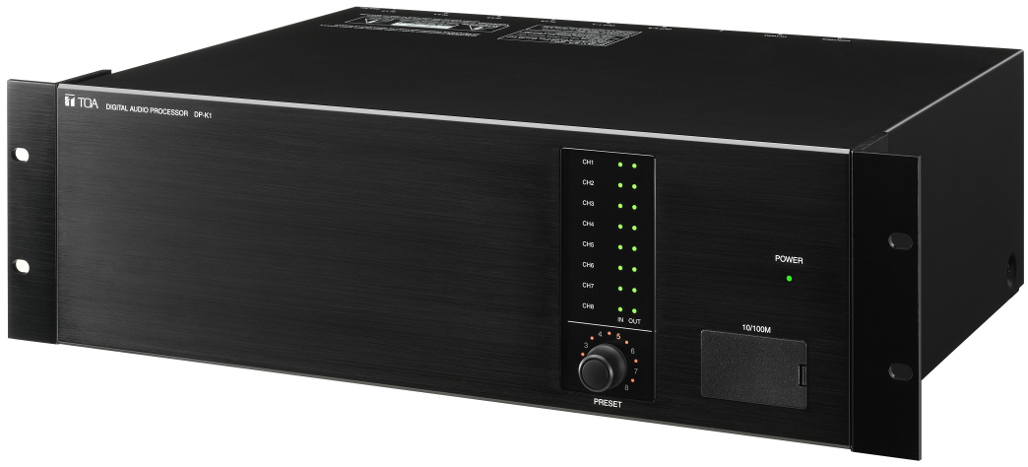

DP-K1 Digital Signal Processor
DP-K1 CE301
The DP-K1 is a 3U rack mountable Digital Audio Processor. It features an Automatic Resonance Control function that automatically generates an optimum filter curve to improve sound clarity after measuring the acoustic characteristics in architectural space. It permits flexible configuration of inputs and outputs, from 2-IN/4-OUT to 8-IN/8-OUT using the optional modules. Each function is set by a PC using the dedicated software. The settings can be stored in the unit's internal memory and the stored preset memories can be recalled from the unit without connecting the PC.
- * 0 dB = 0.775 V
| Power Source | 230 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 40 W (450 mA) |
| Frequency Response | 20 Hz - 20 kHz, ±1 dB (+4 dB* input) |
| Input | Max. 8 channels, modular construction (modules optional) |
| Output | Max. 8 channels, modular construction (modules optional) |
| IO Configuration | 2-IN/4-OUT, 2-IN/8-OUT, 4-IN/4-OUT, 4-IN/8-OUT, 6-IN/4-OUT, 6-IN/8-OUT, 8-IN/4-OUT, 8-IN/8-OUT |
Signal Processing
| Automatic Resonance Control Function | Parametric equalizer: 20 Hz - 20 kHz, ±12 dB, Q: 0.267 - 69.249 |
|---|---|
| Level Control | - to +12 dB (0.5 dB steps), with polarity selector |
| Equalizer/Filter | Parametric equalizer: 20 Hz - 20 kHz, ±12 dB, Q: 0.267 - 69.249 Filtering: High-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct Low-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct Notch filter 20 Hz - 20 kHz, Q: 8.651 - 69.249 All-pass filter 20 Hz - 20 kHz, Q: 0.267 - 69.249 High shelving filter 6 - 20 kHz, ±12 dB Low shelving filter 20 - 500 Hz, ±12 dB Horn equalizer 20 kHz, 0 to +18 dB (0.5 dB steps) Crossover filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct |
| Compressor | Threshold: -16 to +24 dB* (1 dB steps) Ratio: 1:1, 2:1, 3:1, 4:1, 8:1, 12:1, 20:1, :1 Attack time: 0.02 - 100 ms Release time: 10 ms - 5 s |
| Noise gate | Threshold: - to -26 dB* (1 dB steps) Attack time: 0.1 - 100 ms Release time: 20 ms - 5 s |
| Delay | Delay time: 0 - 682.0 ms (0.021 ms steps) |
| Matrix | 8 × 8 Level control: - to 0 dB (1 dB steps), with polarity selector |
| Preset Memory | 8 |
|---|---|
| Auxiliary Function | Key lock function |
| Setting Software | OS: Windows 2000/XP Control system: 10 BASE - T/100 BASE-TX, Auto-Negotiation, RJ45 connector |
| Front Panel Section | Preset memory recall knob: 1 Input indicator: Green LED Output indicator: Green LED |
| Module Slot (Rear Panel) | Input module slot: 4 Output module slot: 2 Remote control module slot: 1 |
| Operating Temperature | +5 ℃ to +40 ℃ (41 ゜F to 104 ゜F) |
| Finish | Panel: Aluminum, hair-line finish, black Others: Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 482.6 (W) × 132.6 (H) × 320 (D) mm (19" × 5.22" × 12.6") (excluding projection) |
| Weight | 7.4 kg (16.3 lb) |
| Accessory | Power cord (2 m (6.56 ft)) ……1, Rack mounting screw ……4, Rack mounting bracket (preinstalled on the unit) ……2, Blank panel (preinstalled on the unit) ……8, Module mounting screw (spare) ……4, CD (software) …1 |
| Option | Mic/Line input module: D-921E, D-921F, D-922E, D-922F Stereo input module: D-936R Digital input module: D-923AE, D-937SP Line output module: D-971E, D-971M, D-971R Digital output module: D-972AE, D-961SP Remote control module: D-981, D-983 |
