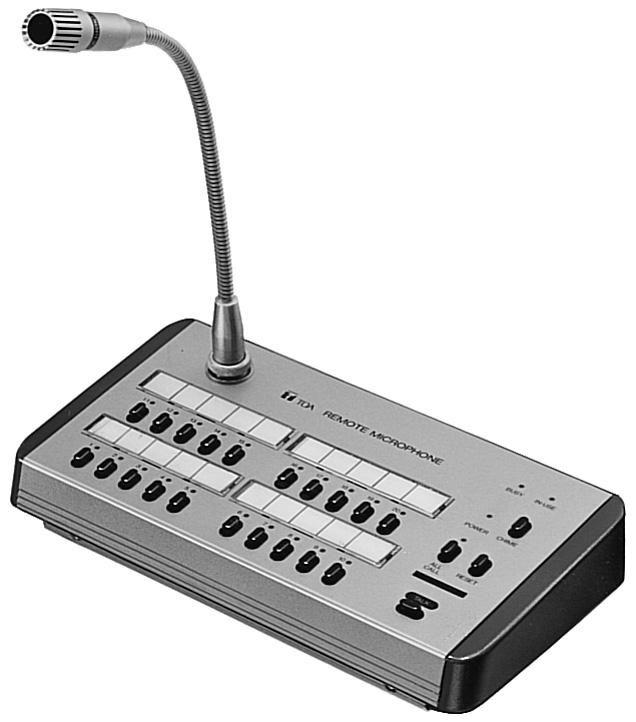

VR-1020 Paging Microphone
VR-1020
Used in conjunction with the V-1069 data receiver, the VR-1020 remote microphone permits broadcast to up to 20 zones plus all-call control.
| Power Requirements | 24 V DC |
|---|---|
| Power Consumption | 110 mA |
| Output | 0 dBV, 600 Ω, balanced |
| Microphone | Gooseneck electret condenser mic with windscreen |
| AUX Input | -20 dBV, 100 kΩ, unbalanced |
| Chime | V-1069's internal chime : 4-tone chime, 2-tone chime, gong or 1-tone chime (selectable) |
| Output Control | 20 zones + all-call |
| Finish | Metallic gold |
| Dimensions (W×H×D) | 274(10.79") × 62(2.44") × 155(6.10") mm, without microphone |
| Weight | 1.3 kg (2.87 lb.) |
| Accessories | Microphone EM-850B(S)……1 Cord clamp……1 Zone identification labels……4 |
| Connection cables | 1 twin shielded cable and 2 twisted pair cables (Line resistance : 10 Ω or less, Cable length : 200 m or less Outer diameter : 10 mm or less) |
