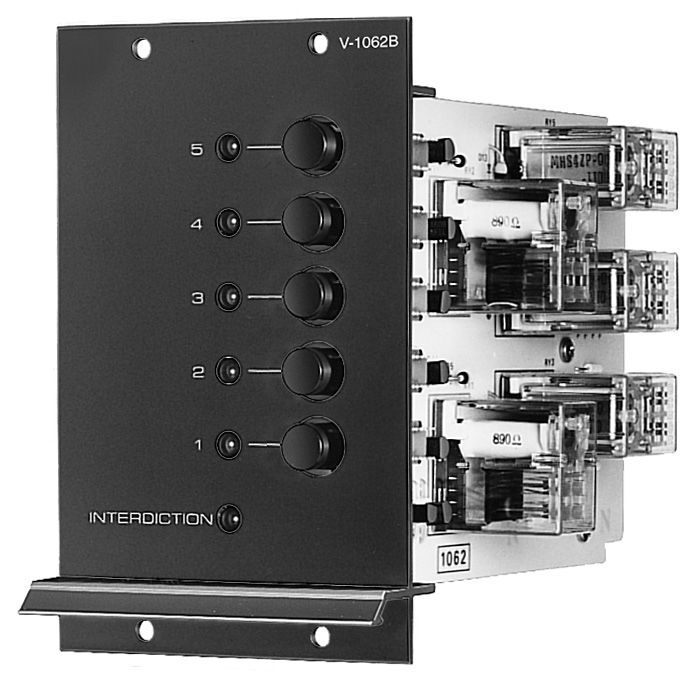

V-1062B 5-Zone Selector Module

V-1062B

V-1062B

The V-1062B is a 5-zone selector module that assigns either of two inputs to five outputs. It designed for use with the VM series mixer power amplifiers and the mixerframe.

Specification
Power Requirement 24 V DC
Current Consumption 160 mA
Inputs 2 Inputs
Outputs 5 Outputs
Switches 5 Selector buttons
Indications Zone selector lamp : Green LED's
Interdiction lamp : Red LED
Connections Input/output : 2 of 10-pin terminal
DC input/remote : 10-pin terminal
Color Black
Dimensions(W×H×D) 80.3 (3.16")×129 (5.08")×191 (7.52") mm
Weight 420 g (0.93 lb.)
