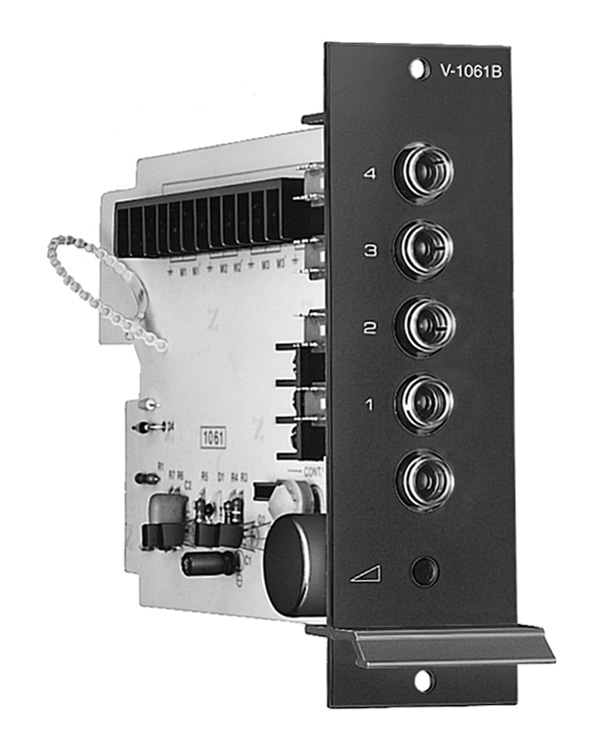

V-1061B Program Selector Module

V-1061B

V-1061B

The V-1061B is a program selector module with 4 inputs and 2 outputs that designed for use with the VM series mixer power amplifier and the mixerflame.

Specification
Power Requirement 24 V DC
Current consumption 4 mA
Inputs 4 Inputs
Outputs 1 balanced output
1 unbalanced output
Switches 4 selector buttons
1 reset button
Programming function Muting : When priority function is activated, unbalanced output level
of this module will be reduced automatically.
Controls 1 output level control
1 muting level control
Connections Input : 10-pin terminal
Balanced output : 3-pin terminal
Unbalanced output : 10-pin card edge connector
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (5.08")×212 (8.35") mm
Weight 180 g (0.40 lb.)
