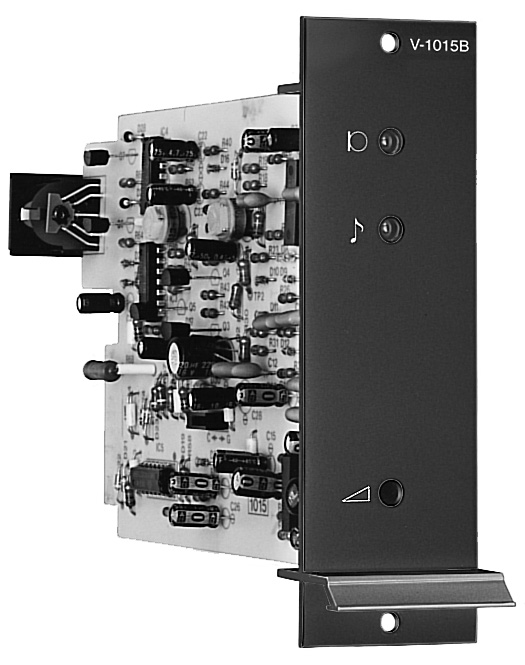

V-1015B Chime Module

V-1015B

V-1015B

The V-1015B is a chime module can generate two-tone chime or gong signal inconjunction with the mixer flame V-1000B or the VM series mixer power amplifier.

Specification
Signal Two-tone chime or gong (switchable)
Frequency Response Chime : 440 Hz, 554 Hz
Gong : Mixed frequency of 440 Hz, 554 Hz
Sounding Time Chime : Approx. 2.5 s
Output Level 280 mV(p-p)
Output Impedance 10 kΩ
Current Consumption 33 mA
Indicators Chime/Gong : Red LED
Speech : Green LED
Controls 1 output level control
2 frequency controls
1 speed control
Connections Indication output : 5-pin DIN socket
Signal output & power received : 10-pin card edge connector
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (5.08")×212 (8.35") mm
Weight 140 g (3.07 lb.)
※ This module works on the highest priority always when operated.
