MT-251H Matching Transformer

MT-251H

MT-251H

Designed for use with the DA-250DH, DA-250FH, DA-500F-HL and DA-500FH Multi-Channel Power Amplifiers, the MT-251H electrically isolates the high-impedance speaker lines from the amplifier.

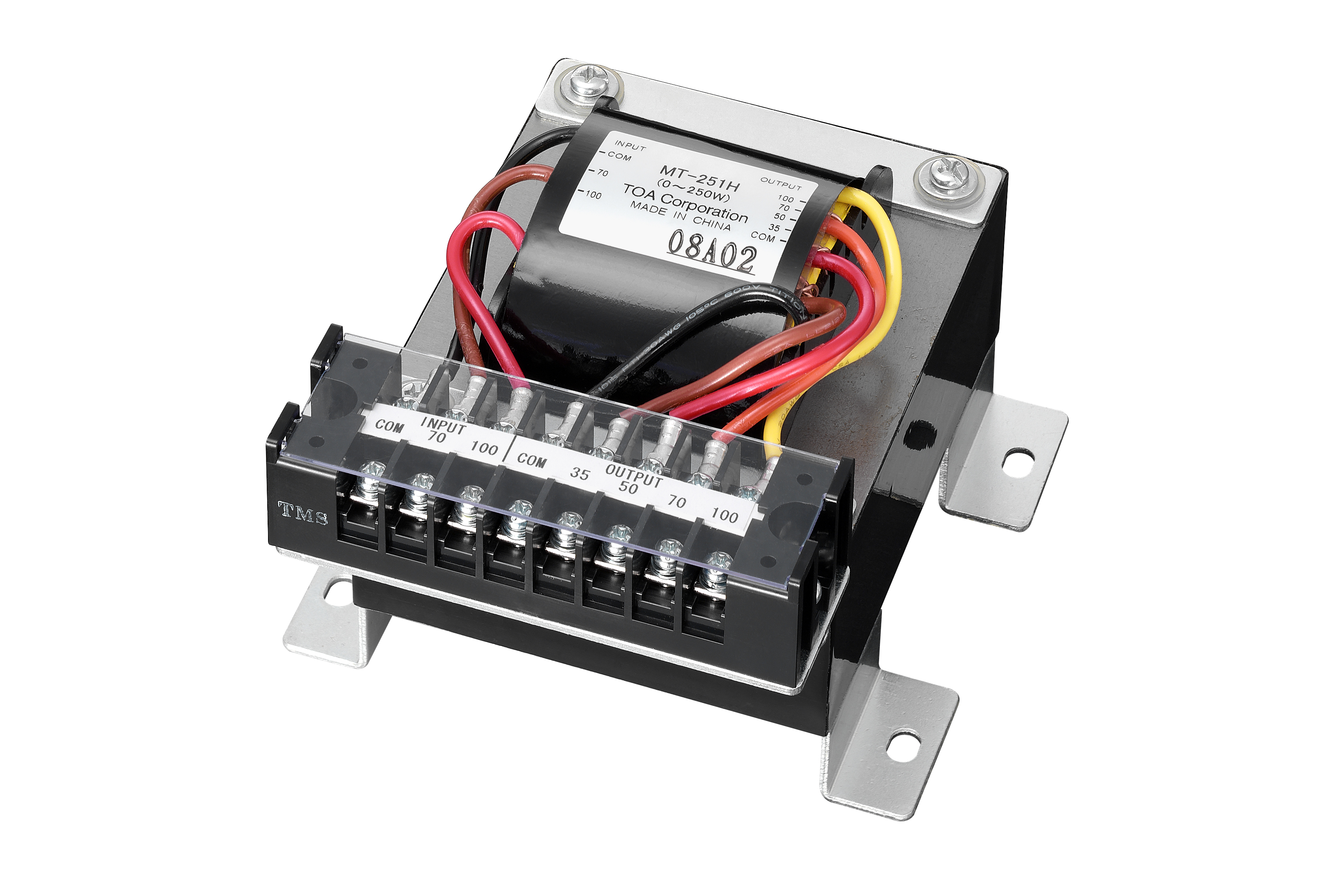

Brochure Photo
Specification
Capacity 0 - 250 W
Primary Side 100 V line, 70 V line
Secondary Side 100 V line, 70 V line, 50 V line, 35 V line
Frequency Response 30 - 18,000 Hz (+0 dB, -3 dB)
Connection Terminal M3 screw terminal, distance between barriers: 6.6 mm (0.26")
Dimensions 108 (W) × 80 (H) × 122 (D) mm (4.25" × 3.15" × 4.8")
Weight 2.4 kg (5.29 lb)
