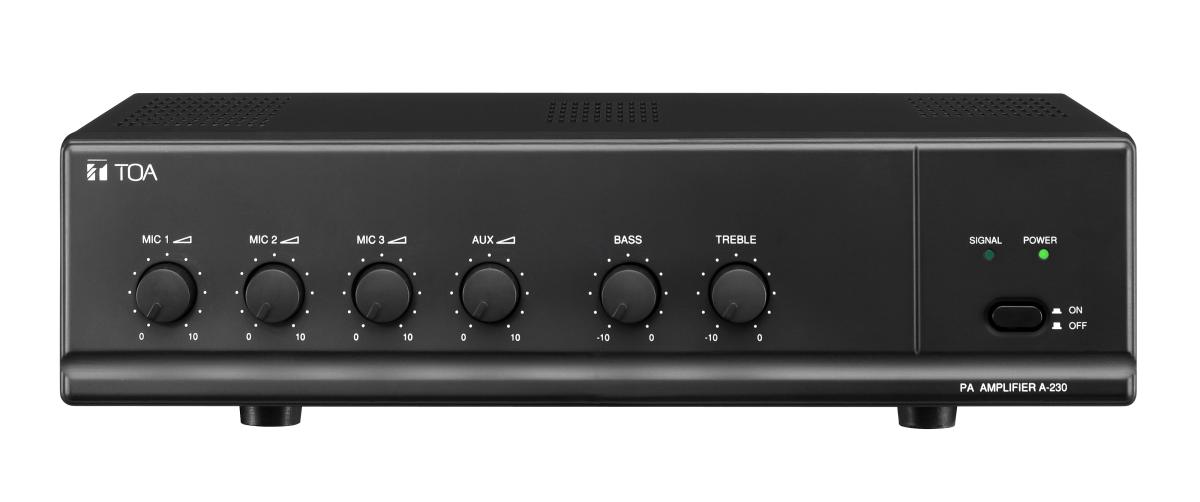

A-230 PA Amplifier

A-230 CE-GB

The A-230 is a power amplifier well-suited for broadcasting paging and supplying background music in restaurants, pubs, shops, houses of worship and so on.

Specification
* 0 dB = 1 V
Power Source 240 V AC, 50 Hz
Rated Output 30 W
Power Consumption 34 W (AC operation at EN60065)
Frequency Response 50 Hz - 20 kHz
Distortion 1 % or less at 1 kHz, 1/3 rated power
Input MIC 1: -60 dB* (1.0 mV), 600 Ω, Unbalanced, Equivalent to 5-pin DIN Type
MIC 2: -60 dB* (1.0 mV), 600 Ω, Unbalanced, Equivalent to phone jack Type
AUX 1, 2: -20 dB* (100 mV), 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Floating balanced
High impedance: 330 Ω (100 V)
Low impedance: 4 Ω (11 V)
S/N Ratio 60 dB or more (MIC 1, 2)
70 dB or more (AUX 1, 2)
Tone Control Bass: -10 dB at 100 Hz
Treble: -10 dB at 10 kHz
Muting MIC 1 overrides other Mic input and AUX inputs with 0 - 30 dB attenuation,
attenuation by switch
Indicator Power LED, Signal LED
Finish Panel: ABS resin, black Hair Line
Case: Steel plate, black
Dimensions 350 (W) × 105 (H) × 240 (D) mm (13.78" × 4.13" × 9.45")
Weight 3.5 kg (7.72 lb)
